This study was performed to analyze the multiple glass fracture. If the force continues even after the radial fracture the tensile stress develops on the side where the force was applied.

Glass Analysis

There is another terminology that is known as cone fracture observed to be caused by a penetration of the high velocity projectile such as a bullet.

. Analysis of glass fracture pattern made by 177 45 mm Caliber air rifle Glass is the hard amorphous solid. Download this Broken Glass Concentric Glass Fracture photo now. Analyzed the pattern of glass fractures that were made by the air rifle on the glasses of different thicknessIn this approach a special aspect of glass coating with Sun.

For more information see the Constraints help page. Contaminants or residues from the inside surface will feel different than the outside surface and are helpful in determining the sides. The concentric glass fractures are the secondary fracture and occur after radial fracture.

When glass breaks most of the glass falls inward. Concentric circles form on the same side of the glass as the point of impact. Research Design Glass Fracture We used 60 double strength glass nominally 18 thick window panes and 60 clear glass wine bottles for the glass portion of the fracture.

The window panes were cut into 8 x 8 sections from a single sheet of double strength glass. These tiny bits of glass can get caught in the hair and clothing of a person near the point of impact. Concentric fractures connect the radial fractures in a pattern.

Each pane was numbered as to its location on the original sheet. Concentric cracksare fractures forming in an approximately circular pattern around the point of impact. Watch Now 63 1728 More.

And search more of iStocks library of royalty-free stock images that features Backgrounds photos. A Video Demonstration By Kelly Kent. Glass is weaker under tension than under compression so the opposite side fractures 1st.

Even after washing tiny fragments of glass can. Correspondingly two glass plate impact fracture patterns ie concentric fractures and radial fractures were simulated. A bullet or rock hits the glass it will form two distinct types of fractures.

When a projectile ie. You can visualize these constraints by color if you change the Guide Geometry to Constraint Network. Often it is difficult to determine just from the size and shape of a hole in glass whether it was made by a bullet or by some other projectile.

Fractures Made With a Blunt Instrument or Object Examination of glass fractures caused by the impact of a blunt instrument or object will reveal a pattern of radial and concentric fractures. Using Fire Extinguishers By Terry Bartelt Pat Jensen By the end of this learning activity youll know how to understand use and maintain different types of fire extinguishers. They are usually in straight segments that terminate in an existing radial crack.

Download scientific diagram Radial and Concentric Fractures from publication. Previously Harshey et al. The concentric-like fracture lines often causing physical dislocation of the glass from the pane are created after the radial fractures.

These fractures are known as secondary fractures. Formation of Radial and Concentric Fractures in Glass Screencast By Ronald Groffy in this screencast learners examine the formation of radial and concentric fractures as an object breaks a pane of glass. On the same side of impact.

This was demonstrated by firing a firearm at close range into a pane of glass with a white cotton pad located immediately behind it. Concentric fractures connect the radial fractures in a pattern similar to a spider web. However the tiny shards produced in the formation the concentric fractures spray backwards towards the person wielding the weapon or tool.

The next step is to figure out which side of the fragment was facing in and which side was facing out. Radial Fracture - A crack in a gloss that extends outward like the spoke of a wheel from the point at which the glass was struck. In this screencast learners examine the formation of radial and concentric fractures as an object breaks a pane of glass.

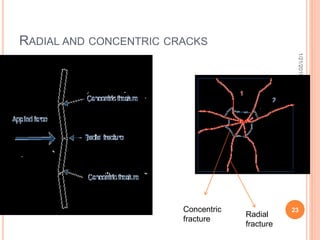

Concentric Fracture - A crack in a glass that forms a rough circle. The impact side can be determined by careful examination of the stress lines on the edges of both the radial and concentric fractures. These fractures are formed on the opposite side of radial fractures ie.

Concentric Fractures Rough concentric circles that form around the point of contact in a glass break. Cone or crater Hertzian cone is a funnel-shaped area of damage caused by a high-velocity impact. 4r rule- determining side of impact ridge lines on radial fractures are at right angles to the rear side opposite the.

Concentric cracks are fractures forming in an approximately circular pattern around the point of impact. The constraints between radial fractures will match your Radial Color dark blue and the constraints between concentric fractures will match your Concentric Color light blue. This leads to series of concentric circles around the point of contact known as concentric fracture.

From the measurement it was noted that the hole diameter values lies between 41 and 67 mm.
